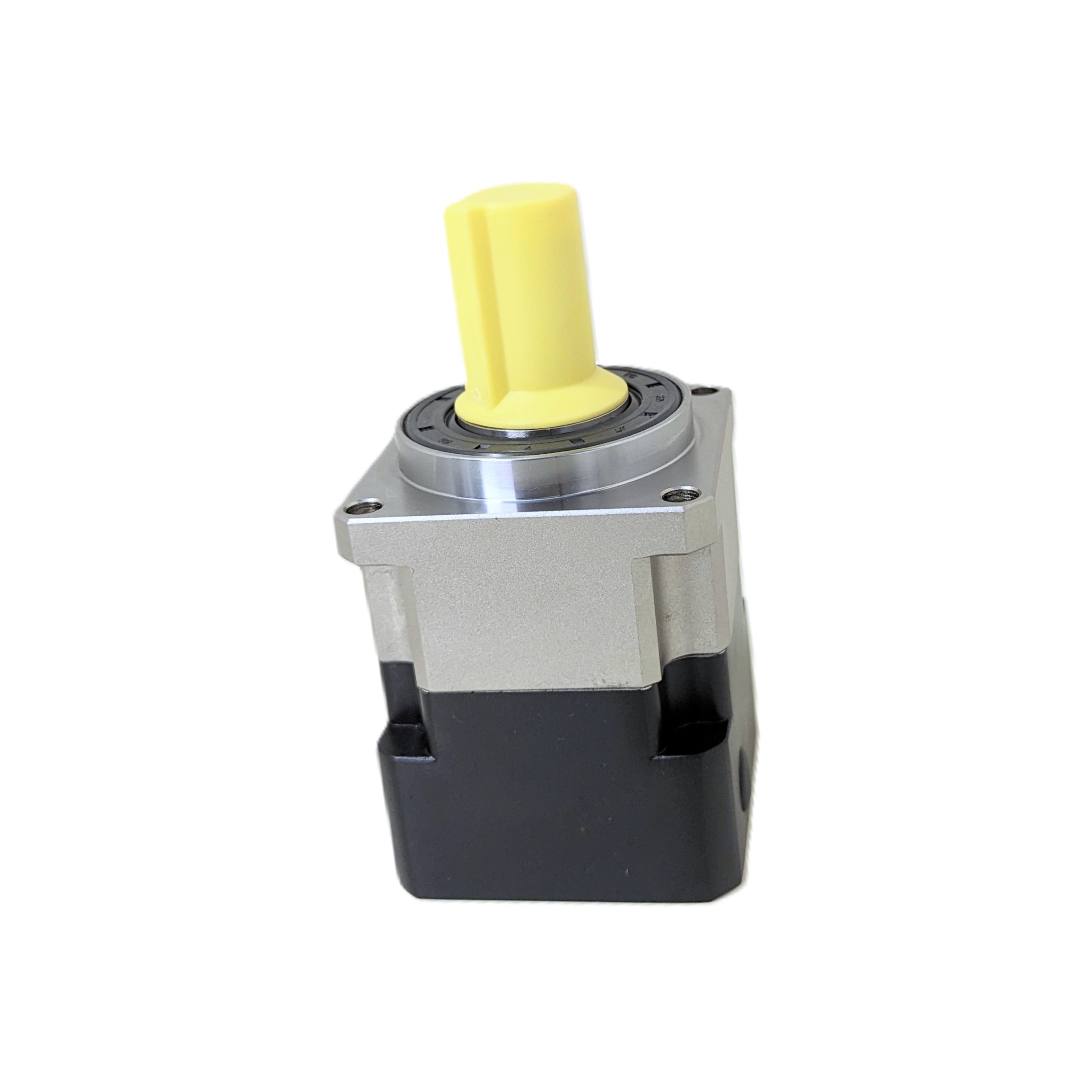

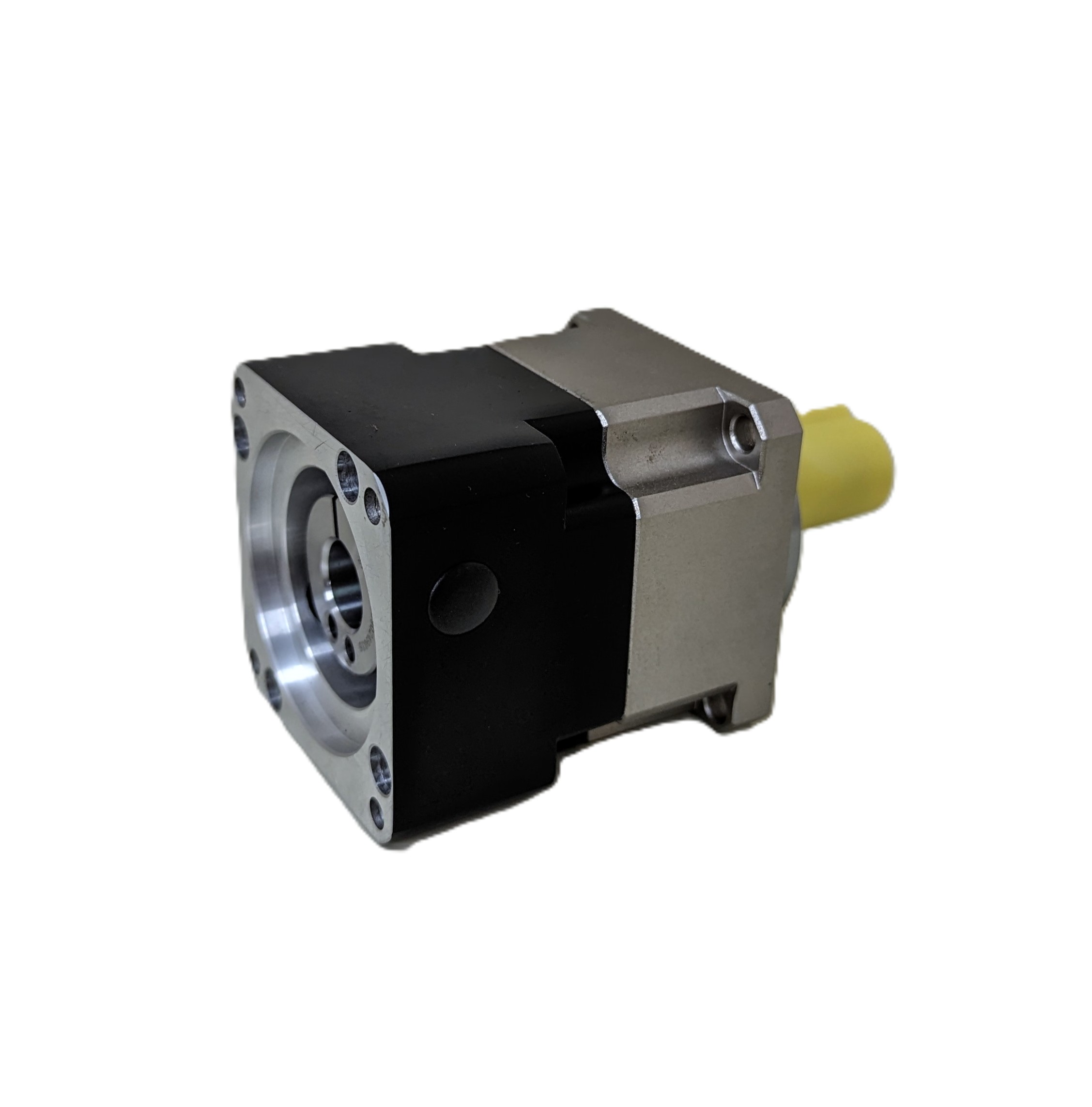

Product Description: A planetary gearbox is a type of gearbox that features an input shaft and an output shaft that are parallel to each other, with the gears arranged in a planetary configuration around a central sun gear.
The design includes an integrated planetary gear carrier and output shaft, an integrated gearbox, and needle bearings for planetary gears with full needle arrangement. High torque output and high radial load capacity, low operating noise, fully synthetic lubricating oil combined with IP65 dustproof and waterproof protection, with a backlash as low as <1 arcmin.
This design allows for the transfer of high torque in a compact package, making it ideal for applications where space is limited, such as in robotics, cnc machine, industrial automation, and aerospace.

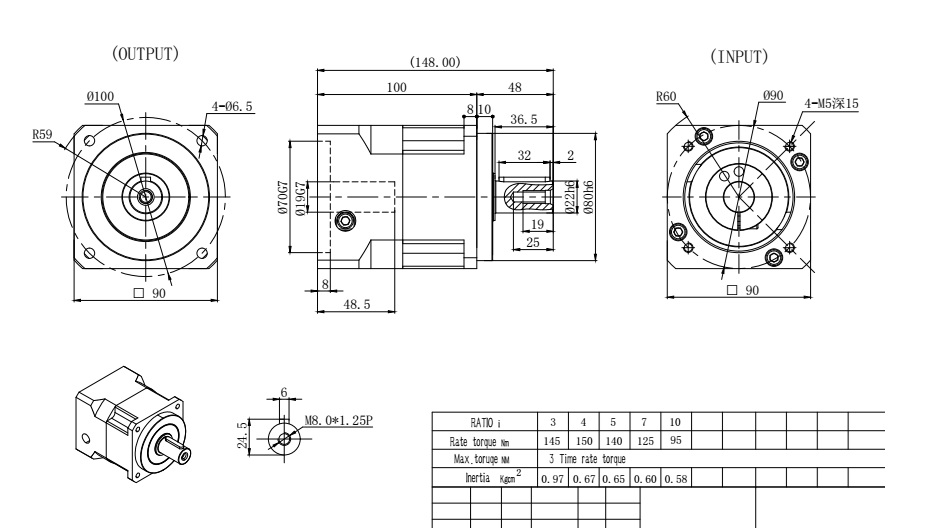

Available Sizes (mm): 42 x 42, 60 X 60, 90 X 90, 115 X 115, 142 X 142, 180 X 180, 220 X 220
Distinctiveness:
Smart Compact appearance
Maximum radial load capacity 31810 N
Maximum axial load capacity 18530
Nominal Output Torque : 12Nm to 530Nm
Low backlash, low noise, and high efficiency
Backlash: 1 Arc-min
Available reduction ratios from 1:3 to 1:100.
Design to use with various servomotors.
Shorter Length
Sealed shut design; self-lubricated and easy to install
lifetime maintenance free
Types:
Output Shaft
Flange Type
Applications:
In Cnc Machine Y Axis, Rotating Axis, High Precision required
In a packaging machine for reproducible products
In a robot, to improve the torque.
Industrial automation
For precise positioning
Smart cars
Share:
The planetary arrangement enables the gearbox to achieve a high reduction ratio while maintaining a compact size, making it an attractive option for many industries where torque density is critical.
With their compact size, light weight, and high transmission efficiency, planetary reducers have become a crucial component in various industries, including industrial automation, robotics, and aerospace.
Their ability to achieve high transmission ratios, withstand strong impacts, and operate smoothly make them an ideal choice for applications that require precise motion control and high-speed transmission. As a result, planetary reducers are widely used in industries such as textile machinery, food processing, and medical equipment, among others
Distinctive Features
Low backlash
High efficiency up to 1 arc-min
Direct mounting
High Load capacity
Low noise
Compact structure
Helical Gear Design
Standard servo motors Mounting
Sealed shut design; self-lubricated and easy to install
